> PARTS FOR WRAITH

DESCRIPTION

Part No. SSD00179

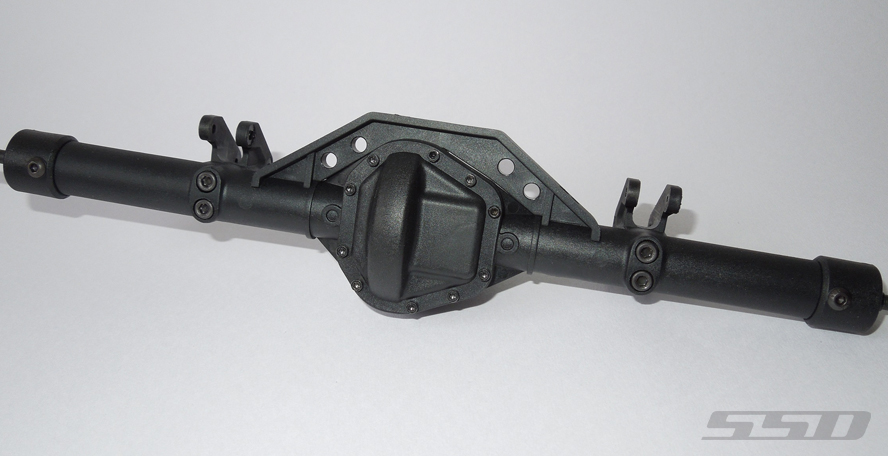

HD D60 Centered Rear Axle for Wraith / SMT10 / Yeti

FEATURES

Scale realistic design

Injection molded

Very durable nylon material

One piece main housing

Centered gear housing

Hardened steel axle shafts

Larger input pinion shaft bearings

Removable diff cover

Upper 4 link mount included

Lower link/shock mounts included

Same link mount locations as stock AR60 axle

Also fits stock AR60 lower link mounts

Compatible with Axial axle gears

Same width as an AR60 rear axle

Direct replacement for an AR60 rear axle

Direct fit onto Wraith, SMT10, Yeti and Bomber chassis

WHAT'S INCLUDED

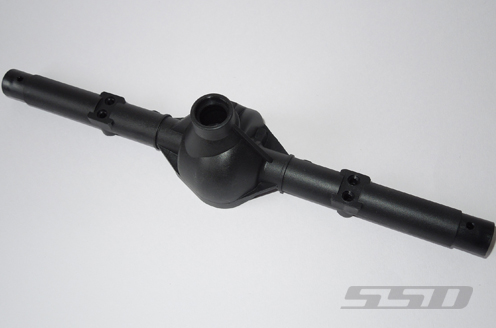

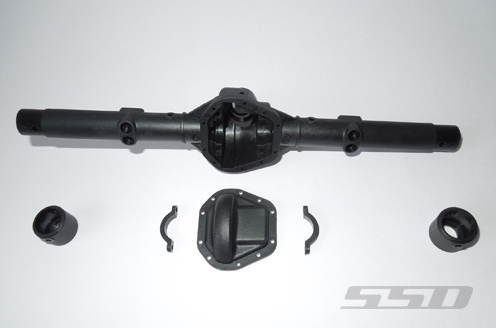

Main axle case

2 * bearing holders

Diff cover

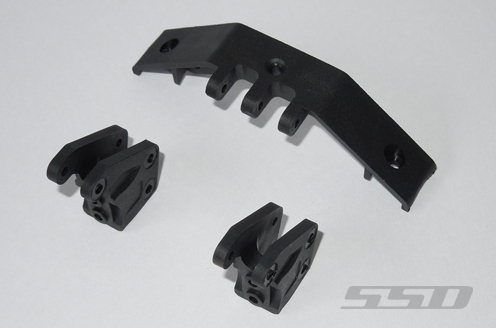

Upper 4 link mount

2 x Lower link mounts

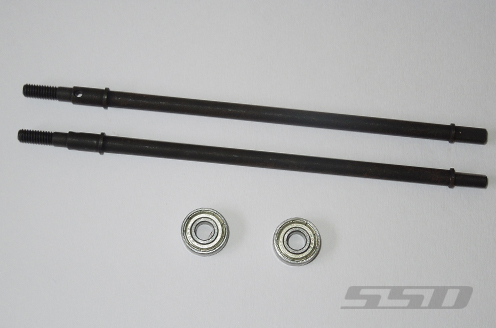

2 *  Axle shafts

2 *  5 x 13 x 4mm bearings

HARDWARE

10 * M2 x 6mm cap head

4 * M2.5 x 8mm cap head

7 * M3 x 6mm button head

4 * M3 x 16mm cap head

1 * M3 x 25mm button head

1 * M3 x 14mm flat head

Note:

Installation instructions can be downloaded here

Replacement centered rear axle shafts are available (SSD00040)

Replacement HD centered rear axle shafts are available (SSD00081)

Aluminum diff covers are available:  SSD00092 & SSD00095

Aluminum bearing caps are available:  (SSD00065

Wide axle conversion kit for Yeti is available (SSD00201)

Aluminium upper link mount is available (SSD00282)


 HD D60 CENTERED REAR AXLE FOR WRAITH / SMT10 / YETI
